SKU: 9104121199

Open up your vehicle to fresh air and light! This upgraded version of the Midi Heki Style roof light has improved safety features, aerodynamics, appearance and maintenance.

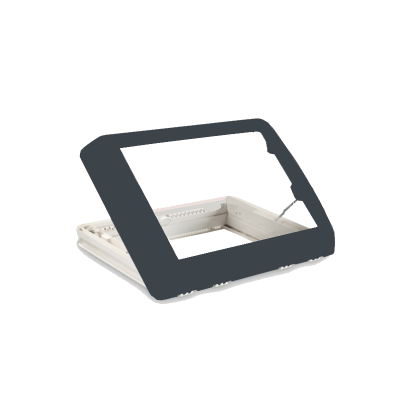

• • Separately adjustable darkening and fly screens
  • Well insulated dome with double acrylic glazing

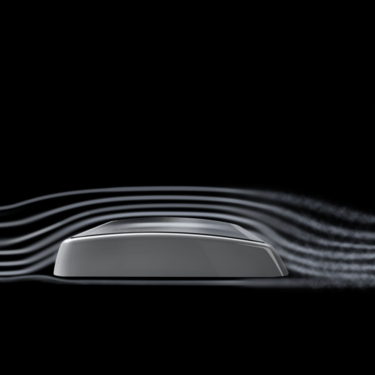

  • Improved aerodynamics reduce by 20 %

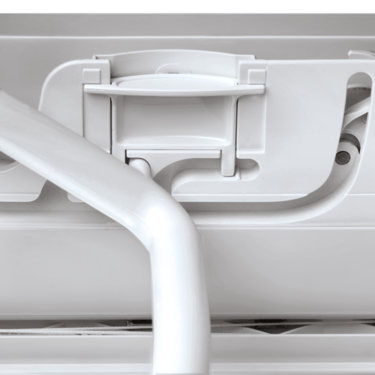

  • Hinge and lock integrated into frame for improved safety and mechanical reliability
  • Opens to three positions: fully open, half-open and bad-weather position
  • With or without forced ventilation
  • Modern design for stylish interior and exterior appearance

ENJOY NATURAL LIGHT AND FRESH AIR

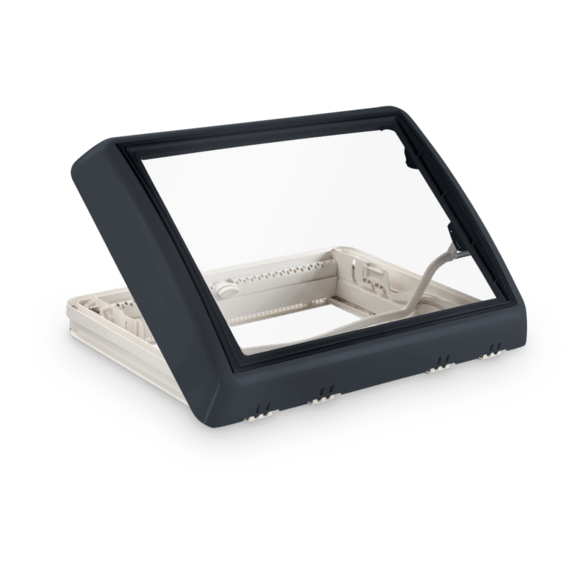

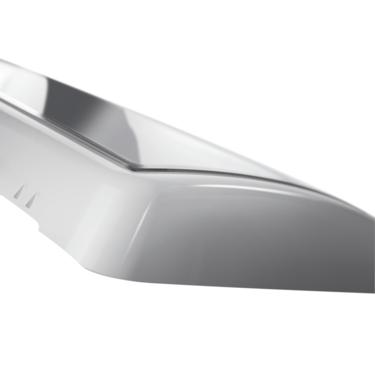

This Dometic Midi Heki Style is an advanced version of Dometic's mid-sized roof windows. It features a newly designed dome with double acrylic glazing for enhanced insulation and better visual integration. With its improved design, the Midi Heki Style is both easier to clean and generates up to 20 % (3 dB) less noise thanks to improved aerodynamics. An inner frame with separately adjustable darkening blind and fly screen conveniently keep sunlight and insects out of the vehicle. This advanced Midi Heki Style is available with crank or lever operation, with or without forced ventilation.

SPECIFICATIONS

GENERAL
SKU number 9104121199
Model Midi Heki GD Motorized
Model on label Midi Heki Style
Scope of delivery Midi Heki Style with manual in box
Product Description Roof window with lever, grey, with forced ventilation, 700 x 500 mm

DIMENSIONS
Dimensions product depth 617 mm
Dimensions product width 846 mm
Net weight 8,2 kg
Dimensions ordered width 700 mm
Dimensions ordered height 500 mm
Dimensions opening width 585 mm
Dimensions opening height 404 mm
Standard mount. material thickness 1 min 30 mm
Standard mount. material thickness 1 max 34 mm
Possible material thickness 1 min 25 mm
Possible material thickness 1 max 29 mm
Cut out width 500.00 mm

ADDITIONAL
Opening angle max 45.00 °
Positions fixed 3
Certificates eMark

LOGISTICS
Dimensions parcel depth 700 mm
Dimensions parcel height 230 mm
Dimensions parcel width 910 mm
Parcel weight 10.80 kg
