Converter Power Distribution Unit

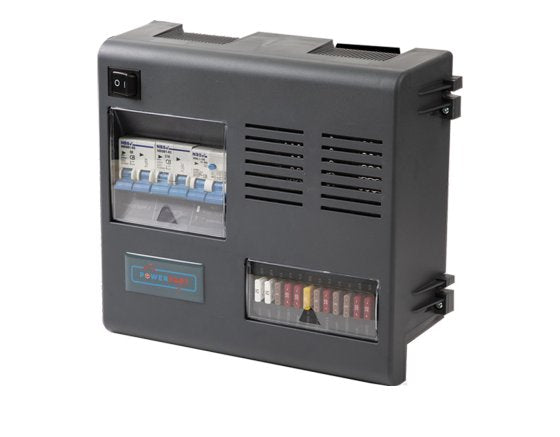

The PowerPartconverter PDU harness kit is the ideal solution for converting your van into a camper./n With a complete plug and play system, compact yet powerful PDU unit and sleek control panel,carrying out a conversion couldn?t be easier. Included in Kit: PDU, Wiring Harness, Vegas Control Panel The PDU has a 230V input to a type A 25amp RCD that provides 4 230V outputs for sockets and appliances through a 16-amp MCB. It also has a 6amp MCB for the 10amp power supply which converters 230V to 12V. There are 12 separate fuse protected outputs for: Auxiliary, Lights, Hob/Oven, Heater, Pump/toilet,Control Panel Ignition, Control Panel Perm, Fridge, Fridge 3S, Permanent, Leisure Battery, Vehicle Battery. PDU Dimensions ? Width: 307mm Depth: 93mm Height: 262mm. The Wiring Harness has 300mm Ignition, permanent and water probe options from the PDU and a 1m length from the PDU breaking out into separate 1m lengths to feeds for: x2 lights, x2 Auxiliary, 12V fridge, Heater,Hob/Oven, Toilet, Pump and a 2M length to the Control Panel. Vegas control Panel is a x2 C-Line in size. The Button Panel has a master switch, Lights switch and Awning light switch,2amp rated (Connection to awning light from Control Panel) and the Meter Panel has a voltmeter.
