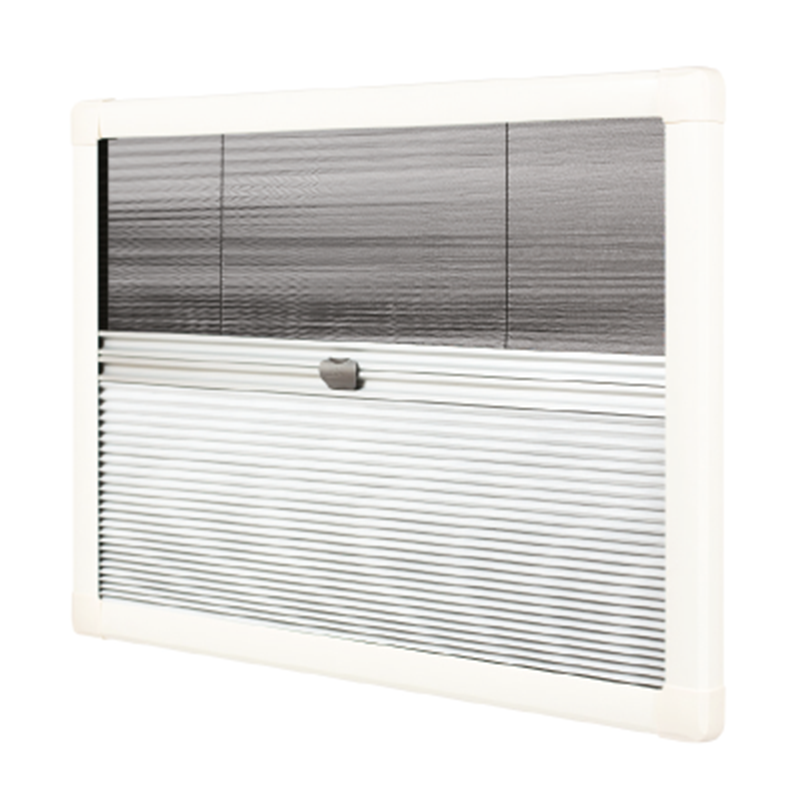

Horrex Resizable UCS RK Excellent kit 872 x 501 for caravans, campervans, and motorhomes.

SKU: 258.958

The Horrex DuoPliss (often referenced as the Horrex DuoPliss UCS or just UCS) is a premium combination window blind and flyscreen system designed primarily for caravans, campervans, and motorhomes.

Here are the key features and information gathered:

Functionality: It's a dual-function cassette system that features a pleated blackout blind and a pleated insect flyscreen in one unit. This allows for control over light, privacy, and airflow while keeping insects out.

Design & Construction:

The system uses pleated (plissé) fabric for both the blind and the flyscreen.

The newer UCS (Unlimited Creative Solutions) version is described as the "improved version of the classic Duo Plissé."

It boasts a sturdy construction, often made completely from high-quality aluminium (in some models like the UCS).

The operation is designed to be smooth and silent.

The draw bar is designed to remain horizontal during use.

Blackout Blind: The shade fabric is typically a 4-layer blackout material to ensure no light penetration and long durability. An optional feature is honeycomb shade fabric for enhanced thermal insulation.

Flyscreen: The mesh is made of high-quality polyester for excellent airflow and durability.

Installation/Fitting:

It is designed to fit a wide range of windows, often compatible with frames like Polyvision windows.

The UCS version is resizeable (often called "trim-to-fit"), meaning it can be cut down from a limited number of standard sizes to precisely fit various window apertures, making it versatile for after-market upgrades.

The design is compact and often allows for assembly directly to the window profile without visible screws for a "factory fitted" look.

Materials: Both the blackout fabric and the mesh are available in a fire retardant version.

Semi-assembled unlimited creative solutions (ucs) black-out pleated blind with insect screen and side guiding channels for rattle free use and installation on straight windows inside recreational vehicles (rv’s)
**operation** the pull bars of the pleated blind (bottom up) and pleated insect screen (top-down) are connected with a clicker and are easily separable by hand for individual manual stepless height adjustment.
**installation** the system construction height is 36.4 mm. min. mounting space for the width and height with respect to the window (cut-out) size: • general rubber (rk) frames 78 mm, fit end caps to pull bar and side channels to blind with provided screws. on face fixation with 4 screws of 3.5 x 25 mm

**material specifications**
• Base profile: pvc extrusion 40 x 32 mm (hxd) in black (± ral9005) with ventilation holes at the top and bottom
• Cover profile: pvc extrusion 42.8 x 30.8 mm (hxd) and caps in cream (± ral9001)
• Pull bars: extruded natural anodized aluminium 26.4 x 15 mm (hxd)
• Black-out fabric: fabric with 15 mm pleat consisting of non woven white front and dirt repelling white pet backing with built-in insulating aluminium layer. fabric thickness 0.3 mm. blind cord runs behind the fabric panel through attached transparent guiders
• Insect screen mesh: black polyester yarn with 15 mm pleat and 1.3 x 1.3 mm mesh opening. visible black cords through holes in the mesh
