RELiON

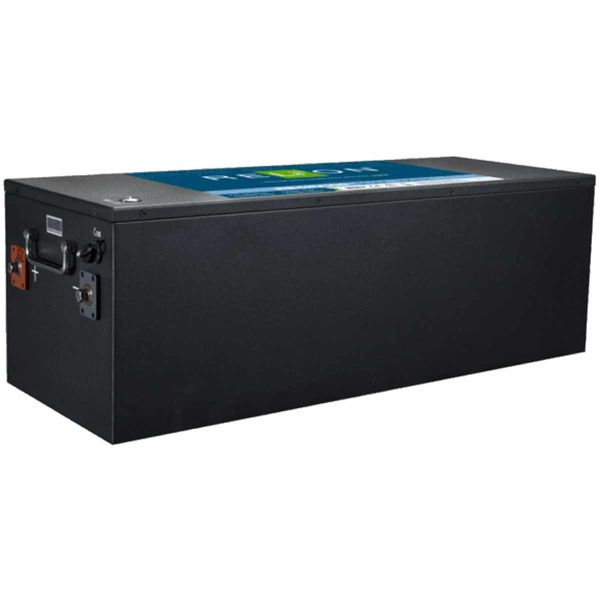

RELiON RB48V100 Lifepo4 Lithium Ion Battery (48V / 100Ah)

RELiON RB48V100 Lifepo4 Lithium Ion Battery (48V / 100Ah)

Regular price £4,680.63 GBP
Regular price Sale price £4,680.63 GBP
Sale Sold out
Taxes included.
 More payment options

RELiON RB48V100 Lifepo4 Lithium Ion Battery (48V / 100Ah)



Product code: REL-RB48V100
Manufacturer SKU: REL-RB48V100

RELiON RB48V100 48V 100Ah LiFePO4 Battery

RELiON RB48V100 is a 48V 100ah lithium deep cycle battery. This lithium iron phosphate (LiFePO4) battery is ready to replace your lead-acid battery bank in your solar energy system or electric vehicle. It's powerful, rugged, and has an extremely long cycle life. The 48V100 battery can store more energy and charge faster than lead-acid battery alternatives.

48V100 in Renewable Energy Applications - If you’re looking for energy storage for your residential solar system for grid-tie or off-grid, this 48V lithium battery is a great option. Deep cycle batteries are a key component in off-grid solar electric systems, and for grid-tie or emergency backup power systems with or without solar. For renewable energy systems, the 48V100 battery is compatible with Outback, Schneider Electric, Magnum, Morningstar and many other leading brands of inverters and solar charge controllers.

All RELiON Batteries use the safest and most stable components. It is equipped with a LINYI Connector terminal type and a built-in battery management system (BMS). The BMS ensures a long lifetime, safe handling - and high-accuracy State of Charge (SOC) calculations.

Applications: Solar, AWP, Electric Vehicles, Marine & Floor Machines

Electrical Specifications

Capacity @ 25A: 240 min

Resistance: 50 mΩ @ 50% SOC

Efficiency: 99%

Self Discharge: <3% per Month

Maximum Modules in Series: 1 (Single Use)

Mechanical Specifications

Cell Type: Cylindrical

Battery Chemistry: LiFePO4

Discharge Specifications

Maximum Continuous Discharge Current: 200 A

Peak Discharge Current: 250 A (4 s ±1 s)

BMS Discharge Current Cut-Off: 300 A (5 s)

Recommended Low Voltage Disconnect: 44 V

BMS Discharge Voltage Cut-Off: 40 V (2.5 vpc)

Reconnect Voltage: 40.5 V (2.53 vpc)

Short Circuit Protection: 5%

Charge Specifications

Recommended Charge Current: 5 A - 50 A

Maximum Charge Current: 100 A

Charge Current 32°F to 14°F (0 to -10 °C): ≤0.1 C

Charge Current -4°F to 14°F (-20 to -10 °C): ≤0.05 C

Recommended Charge Voltage: 56.8 V - 58.4 V

BMS Charge Voltage Cut-Off: 60.8 V (3.8 ±0.025 vpc) (1.0 ±0.3 s)

Reconnect Voltage: 60.8 V (3.9 vpc)

Balancing Voltage: 60.3 V (3.87 vpc)

Temperature Specifications

Discharge Temperature: -4 to 131 °F (-20 to 55 °C)

Charge Temperature: -4 to 131 °F (-20 to 55 °C) *Refer to charge currents below 0°C (32°F)

Storage Temperature: 23 to 95 °F (-5 to 35 °C)

BMS High Temperature Cut-Off: 149 °F (65 °C)

Reconnect Temperature: 145 °F (63 °C)

Unit of Sale Single Unit
Torque 9 to 11 N-m (80 - 100 in-lbs)
Terminal Type Single, Stud Terminals: M8 x 1.25
Brand RELiON
Type Lithium Ion Batteries
Voltage Description 51.2V DC
Height Description 255mm
Width 833mm
Depth 285mm (11.2")
Weight 62 kg (136.7 lbs)
Material Steel Case
Wattage 5.120kWh
Approvals CE, UN38.3, UL1642 & IEC62133
Application Domestic
Capacity Description 100 Ah
Style Lithium-Ion
