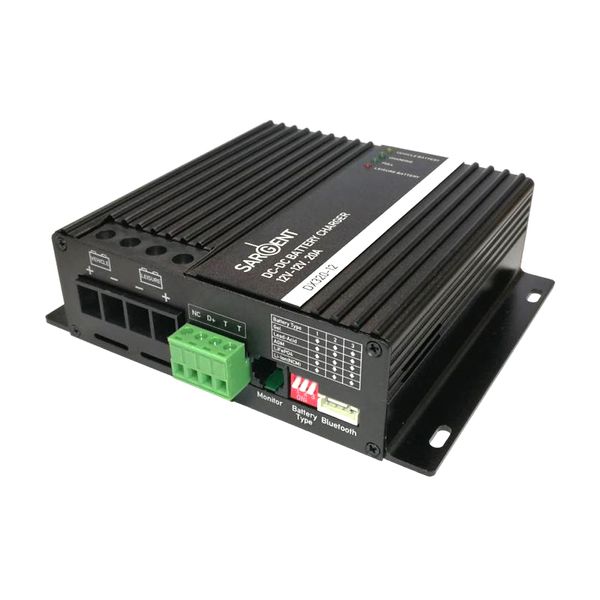

Sargent DC-DC Battery Charger (20A, 3-Stage)
Sargent DC-DC Battery Charger (20A, 3-Stage)
Limited stock call: 01484 442879
Couldn't load pickup availability
Sargent DC-DC Battery Charger (20A, 3-Stage)
Product code: SGT-DX320-12
Manufacturer SKU: DX320-12
Description
This unit takes power from the vehicle battery and alternator, to provide a rapid multi-stage charging of a leisure battery. It is particularly useful when the base vehicle is fitted with a smart alternator, such as Euro6 vehicles.
The charger can provide up to 20 amps to the leisure battery and uses a 3-stage profile to ensure fast, efficient charging during driving.
The unit can be configured for most leisure battery types, including Lead Acid, Gel, AGM & LiFePO4 (we advise checking compatibility with your battery manufacturer before installing).
This charger also features a rugged extruded casing with intelligent fan cooling to reduce noise.
- Power: 260W (max)
- Input voltage range: 10.5 - 15.4V
- Output voltage: 8 - 16V
- Output current: 20A (max)
- Standby current: 17mA (max)
- Efficiency @12V: 94%
- Engine run (D+) input: Yes
Key Features
20A Current
3-Stage profile maximises charge into the leisure battery
Charging is automatically reduced to avoid over-discharge
Optimised for Gel, Lead Acid, AGM, LiFePO4 & Lithium Ion
Displays charging status
Temperature compensation (optional) - automatically adjusts charging rate depending on temperature
Quiet operation
Fully protected by built-in overload, short circuit & over temperature protection
| Brand | Sargent |
| Type | Battery Chargers |
| Voltage Description | Input: 10.5 - 15.4V, Output: 8 - 16V |
| Model | DX320-12 |
| Charge Characteristic | 3 Stage Charging |
| Efficiency | at 12V: 94% |
| Height Description | 41mm |
| Width | 118mm |
| Depth | 147mm |
| Weight | 0.46kg |
| Wattage | 260W (Max) |
| Operating Temperature | -20 - 50°C |
| Amps Description | Output: 20A (max), Standby current: 17mA (max) |
| Capacity Description | 30 - 180Ah |
