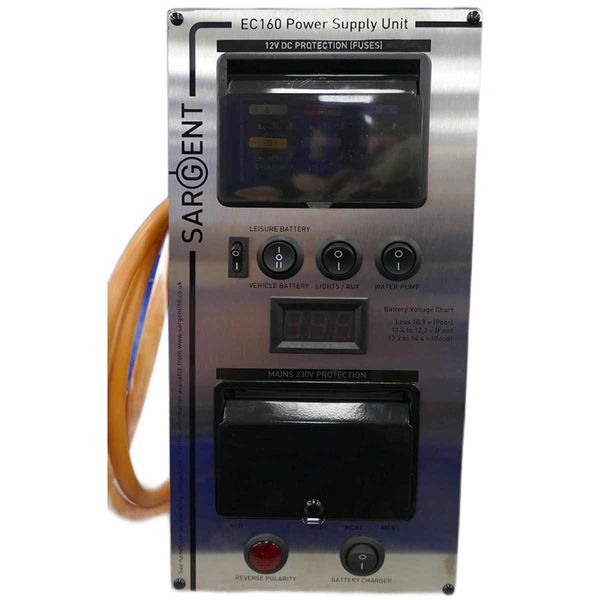

Sargent EC160 Power Supply Unit (Vertical / Silver)

Product code: EC160VSV
Manufacturer SKU: EC160 Vert SV

Description

The Sargent EC160 power supply unit is ideal for a self-build campervan and provides 12V and 240V power supplies.

This PSU has a built in 192W charger with a fixed voltage of 13.8V. The connections for this unit are all screw terminals to allow easy installation of the customer's own harness.

Isolated rocker switches allow the customer to turn on a lighting circuit, pump and battery charger. There is also the function to choose between the leisure or vehicle battery to be used and charged.

230V AC:

- 16A input via wired 2m lead

- RCD protected with reverse polarity indication

- Built in 150w 13.8V fixed voltage battery charger with on/off switch

- 3 x 10A MCB outputs via quick fit connector blocks

12V DC:

- 2 x 15A battery inputs via screw terminal block

- 5 x outputs via screw terminal black

- Pump output via pump switch & 5A fuse

- Lights output via lights / Aux switch & Aux 10A fuse

- Permanent output via 5A fuse

- Fridge output VA 15A fuse

- Built in split charge relay (configurable)

- Built in EMC isolation relay (configurable)

- Digital voltmeter with on/off switch
