Sterling Pro-Combi Pure Sine 1600W 70A
Sterling Pro-Combi Pure Sine 1600W 70A
Couldn't load pickup availability
Sterling Pro-Combi Pure Sine 1600W 70A
Product code: VL-292
Manufacturer SKU: PCSP121600
Description

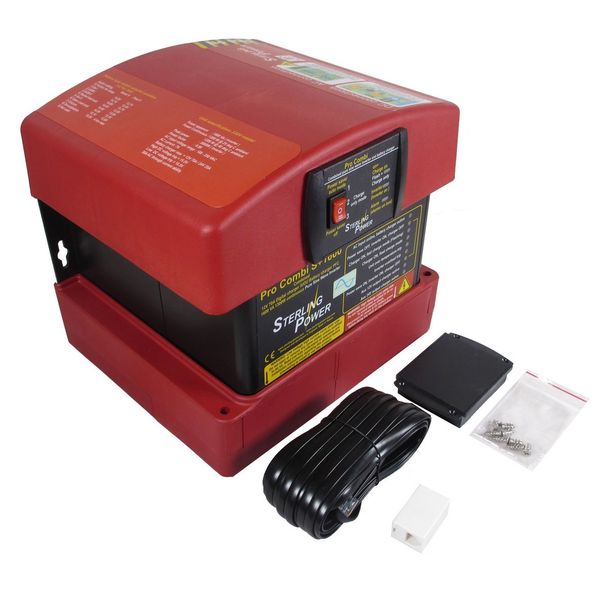

The Pro Combi S+ is a bespoke unit that has an attractive modern design. The unit is lighter, smaller, yet more powerful than its predecessor. The splash proof design offers some protection against the odd water spill. Remote control panel included. The remote is removable and can be replaced with a blank panel. The switch panel can then be remotely mounted using the supplied extension lead (10 metres).
30A automatic crossover switch: If shore power is connected to the combi the unit allows you to run your appliances directly from the shore power. However, when shore power is disconnected, the unit transfers the load from shore power to inverter power in less than 20ms, ensuring a smooth uninterruptible power supply.
Extremely low quiescent current of 0.1A in power saver and 0.5A in normal. Auxiliary charge module available, allowing for starter battery 5A charging at 12V or 24V. Ideal for running hair dryers, microwaves, small kettles and coffee machines. 12V, 1300W continuous, has an overload of 2.5KW for 10-15 seconds.
• Pure Sine Wave
• Output. 2500 Watt Peak Power
• 1300VA Continuous Power
• 70 Amp Battery Charger
• 5A Float charge for starter battery
• Dimensions (H x W x D) mm: 230 x 205 x 225
• Weight: 8.5Kg
Key Features
Extremely low quiesent current
Auxiliary charge module available
Ideal for running hair dryers, microwaves, small kettles and coffee machines
12V, 1300W continuous, has an overload of 2.5KW for 10-15 seconds
| Connection [AC] | Hard wired |
| Output Frequency [Hz] | 50 |
| Output Power [W] Continuous | 1600 |
| Output Power [W] Peak | 3200 |
| Waveform | Pure Sine Wave |
| Connection [DC] | M8 stud |
| Brand | Sterling Power |
| Type | 12V Inverter / Chargers |
| Voltage Description | 12V/24V DC, 230V AC |
| Maximum Output Current [A] | 70 |
| Number of Outputs | 1 (+optional float module) |
| Optional Remote Panel | Yes, included |
| Additonal Float Charge Output | No |
| Cables Included | No |
| Charge Characteristic | Automatic |
| Rating | IP21 |
| Efficiency | 0.9 |
| Height Description | 225mm (8.85") |
| Width | 205mm |
| Depth | 230mm |
| Length | 225mm |
| Weight | 8.5kg |
| Output | 230 v ac |
| Approvals | CE Certified |
| Application | FLA, SLA, AGM, GEL, LiFePO4 Batteries |
| Capacity Description | Recommended Battery Capacity: 400 - 700 Ah |
| Input | 12 v / 24 v |
| Continuous Output | 1300w |
| Charge Current | 70amp |
| Peak Power | 2500w |
