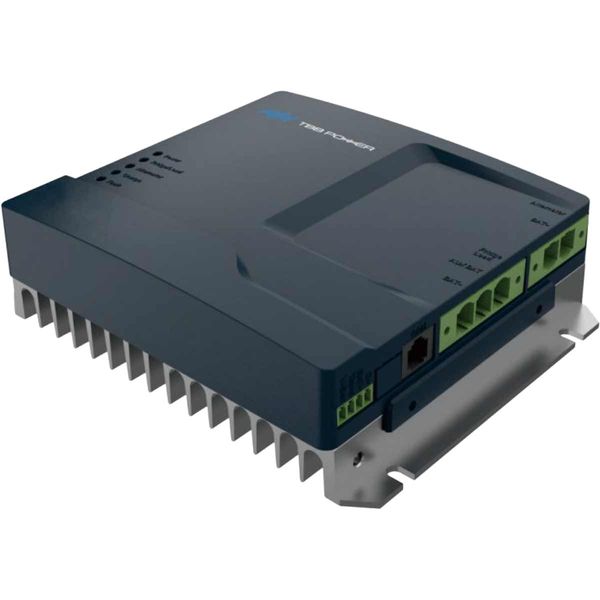

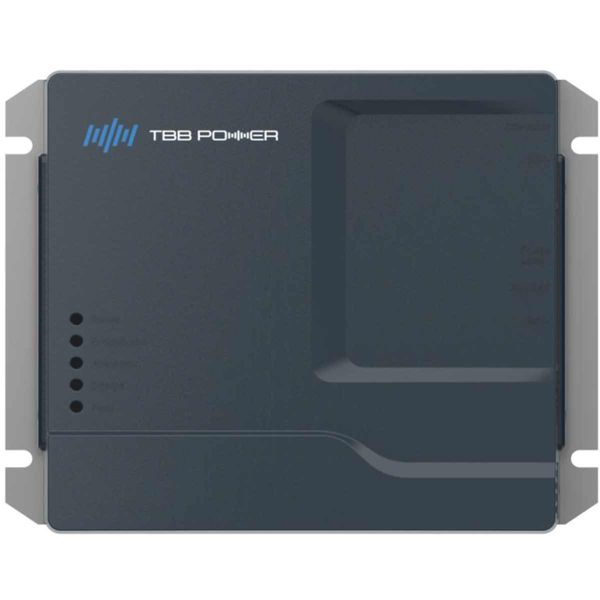

TBB Power DM Series DC-DC Charger (12V / 60A)

Product code: PPT-3195
Manufacturer SKU: 3195

TBB DM series 60A charger is an in-vehicle charging solution which specified designed for on-board application such as RV, Marine, Utility Vehicle, Truck etc.

Single output DM1260 is the booster charger only with charge current up to 60A for 12V systems.

DM chargers are Euro-6 engine compatible, which is able to charge auxiliary battery properly and fully with much wider variable voltage output from engine.

Alternator input voltage range (Default setting): 13.2-16V DC

Automatic activation D+: Yes

Absorption charge voltage (Default Setting): 14.6V DC

Float charge voltage: 13.5V DC

Charge current: 60A

Load bypass current: N/A

Total current of load and charging: 60A

Maximum charging efficiency: 96%

Maximum load bypass efficiency: N/A

Temperature compensation: -3mV/℃/cell

Charge algorithm: TBB premium II multi stage

Protection: Battery charger over temperature, Battery over temperature, Overload, Short circuit

Back-charging function: Standard

Communication: RS485, RJ45 connector

Storage temperature: -40°C to 70°C

Operating temperature: -40°C to 70°C

Enclosure Battery Connection: Cable with connector

Protection Rating: IP20

Weight: 1.0kg

Dimensions: Height 181mm x Width 148mm x Depth 52mm

Standards: Emission ECE 10R-06, EN61000-6-1, EN61000-6-3
