Victron Energy

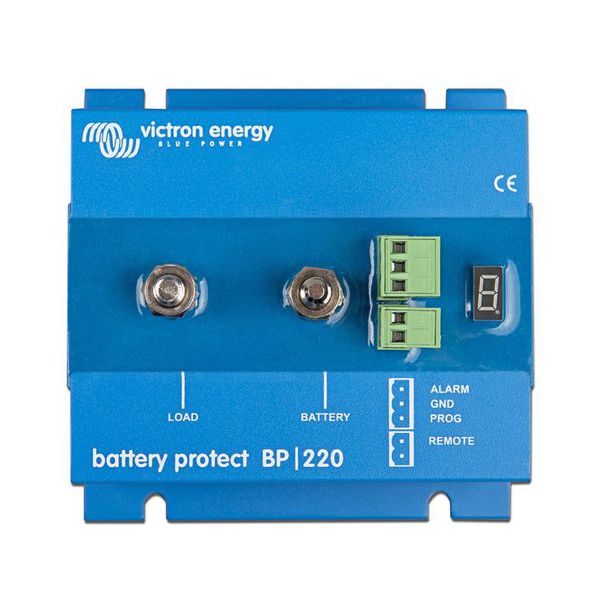

Victron Battery Protect BP220 (220 Amp / M8 Stud)
Victron Battery Protect BP220 (220 Amp / M8 Stud)
Check stock call: 0800 669 6283
Couldn't load pickup availability
Victron Battery Protect BP220 (220 Amp / M8 Stud)
Product code: VV-130
Manufacturer SKU: BPR000220400
Description
This unit disconnects the battery from non-essential loads before it becomes completely discharged. It can be set to disconnect at several different voltages and a digital display is built in to indicate what setting has been selected. An alarm signal is also built in that can be used for an external buzzer/warning light, this alarm is triggered 90 seconds before disconnect. The unit automatically detects the system voltage (12V/24V) and has over-voltage protection built in. Continuous load rating 220A.
NOTE: The battery protect can be used with all types of battery technology.
Key Features
12/24V auto ranging
Programming made easy
Special setting for Li-ion batteries
Ultra low current consumption
Over voltage protection
Ignition proof
Delayed alarm output
Delayed load disconnect & delayed reconnect
| Torque | Mounting: 9 Nm |
| Brand | Victron |
| Type | Load Switchers |
| Voltage Description | 6V - 35V DC |
| Rating | Electronics: IP67 (potted), Connections: IP00 |
| Height Description | 62mm (2.5") |
| Width | 123mm (4.9") |
| Depth | 120mm (4.8") |
| Weight | 0.8kg (1.8 lbs) |
| Consumption | On: 1.5 mA, Off / Low Voltage Shutdown: 0.6 mA |
| Operating Temperature | Full Load: -40°C to +40°C (up to 60% of nominal load at 50°C) |
| Amps Description | Max. continuous: 220A, Peak (during 30s): 600A |
| Connections Description | M8 |
