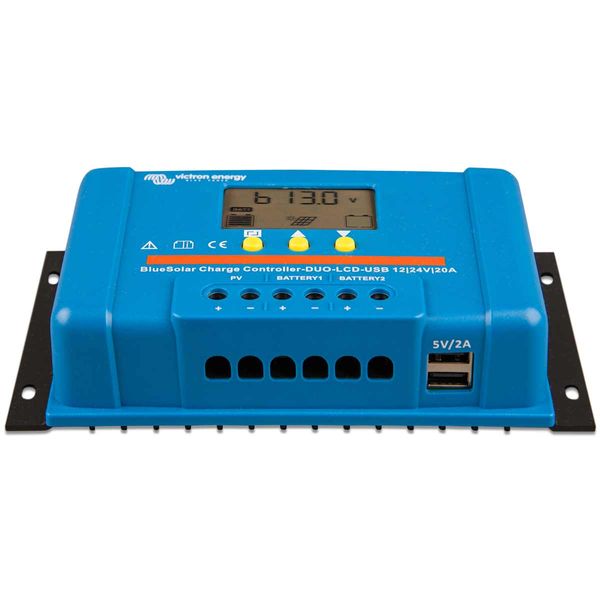

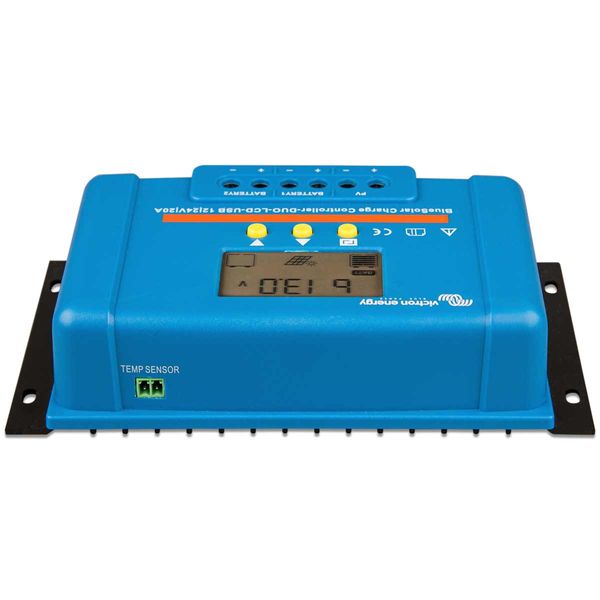

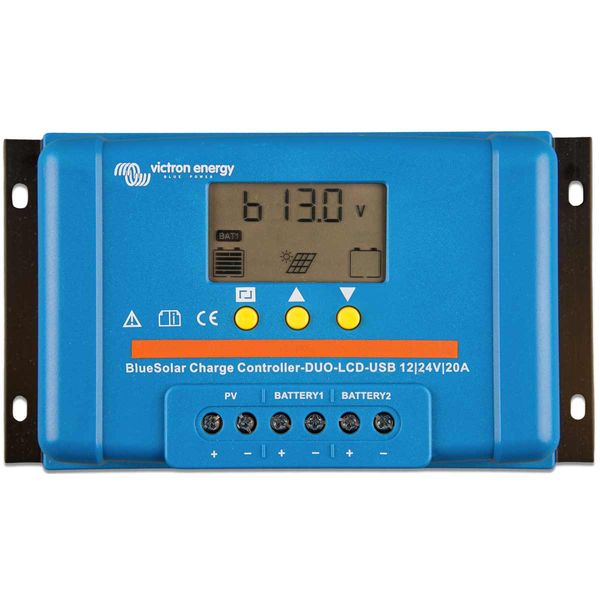

Victron BlueSolar PWM Charge Controller DUO LCD & USB (12V/24V / 20A)

Product code: VC-SCC010020060
Manufacturer SKU: SCC010020060

Victron BlueSolar PWM charge controller DUO with LCD display and two USB outputs. This charge controller will charge two separate batteries, such as the starter battery and the service battery of a boat or mobile home.

Victron SCC010020060 Features:

Programmable charge current ratio - Algorithms for AGM, GEL or Flooded lead-acid batteries and LiFePO4 batteries (with internal BMS).

External Temperature sensor

Liquid Crystal Display for status monitoring and set-up

Two 5 Volt USB outputs - Maximum current of the two outputs combined: 2A

Lighting control function, fully programmable

Three stage battery charging (bulk, absorption, float), fully programmable

Load output with low voltage and manual disconnect (programmable)

Load output protected against over load and short circuit

Protected against reverse polarity connection of the solar panels and/or battery
