Victron Energy

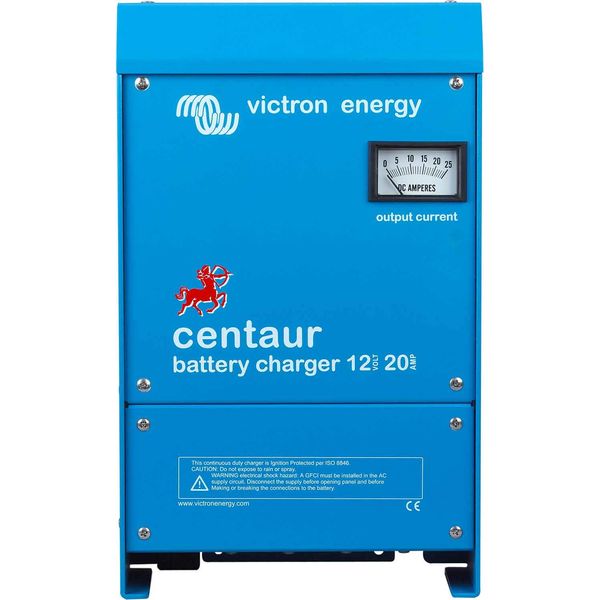

Victron Centaur Battery Charger (12V / 20A)
Victron Centaur Battery Charger (12V / 20A)
Regular price
£445.59 GBP
Regular price
Sale price
£445.59 GBP
Unit price
/
per
Taxes included.
Check stock call: 0800 669 6283
Victron Centaur Battery Charger (12V / 20A)
Product code: VC-CCH012020000
Manufacturer SKU: CCH012020000
Description
Compact analogue battery charger with universal input voltage and frequency range. Suitable for most common battery types, including flooded and sealed lead - acid, AGM, Gel and traction.
• Voltage input: 90-265V AC, 45-65hz,
• Voltage output:12V (nominal)
• Current output: 20A
• Number of outputs: 3
• Dimensions (H x W x D) mm: 355 x 215 x 110
• Weight: 3.8kg
| Brand | Victron |
| Type | Battery Chargers |
| Voltage Description | Input: 90-265V AC / 90-400V DC, Output: 14.3V DC Absorption, 13.5V DC Float |
| Maximum Output Current [A] | 20 |
| Number of Outputs | 3 |
| Optional Remote Panel | No. |
| Additonal Float Charge Output | No |
| Cables Included | No |
| Charge Characteristic | 3 stage, automatic. |
| Rating | IP20 |
| Height Description | 355mm (14") |
| Width | 215mm |
| Depth | 110mm |
| Weight | 3.8kg |
| Material | Aluminium |
| Colour | Blue |
| Approvals | EN 60335-1, EN 60335-2-29, UL 1236, EN 55014-1, EN 61000-3-2, EN 55014-2, EN 61000-3-3 |
| Application | FLA, SLA, AGM, GEL. Batteries |
| Operating Temperature | -20°C to +60°C |
| Amps Description | Up to 20A |
| Capacity Description | Recommended Battery Capacity: 80 - 200 Ah |
| Connections Description | M6 Studs |
| Charge Current | 20A |
| Style | Fixed Position Battery Chargers |
