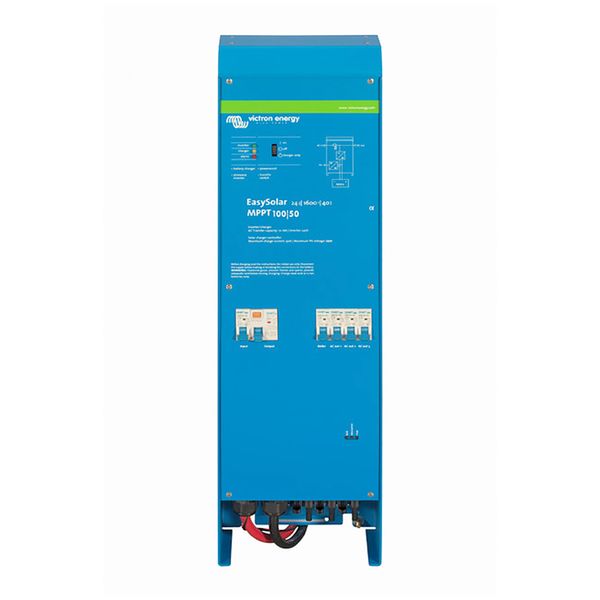

Victron Easy Solar 12/1600/70-16 MPPT 100/50 Inverter/Charger/Control
Victron Easy Solar 12/1600/70-16 MPPT 100/50 Inverter/Charger/Control
Victron Easy Solar 12/1600/70-16 MPPT 100/50 Inverter/Charger/Control
Product code: VV-119
Manufacturer SKU: CEP121621000
Description
All-in-one solar power solution: The Easy Solar combines a MPPT solar charge controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.
The solar charge controller: Blue Solar MPPT 100/50. Up to three strings of PV panels can be connected to three sets of MC4 (PV-ST01) PV connectors.
The inverter/charger: MultiPlus Compact 12/1600/70. The MPPT charge controller and the MultiPlus Compact inverter/charger share the DC battery cables (included). The batteries can be charged with solar power (Blue Solar MPPT) and/or with AC
power (inverter/charger) from the utility grid or a genset.
AC distribution: The AC distribution consists of a RCD (30 mA/16 A) and four AC outputs protected by two 10A and two 16A circuit breakers. One 16A output is controlled by the AC input: it will switch on only when AC is available.
Power Assist: Unique Power Assist technology protects the utility or generator supply from being overloaded by
adding extra inverter power when needed.
• 3000 Watt Peak Power
• 1300 Watt / 1600 VA Continuous
• Dimensions: 745mm (H) x 214mm (W) x 110mm (D)
• Weight 15KG
Brand | Victron |
Type | 12V Inverter / Chargers |
Voltage Description | Inverter: 9.5 - 17V |
Efficiency | 98% |
Height Description | 745mm |
Width | 214mm |
Depth | 110mm |
Weight | 15kg |
Operating Temperature | -20°C to +50°C |
Input | Inverter: 9,5 - 17V |
Charge Current | 70A |
