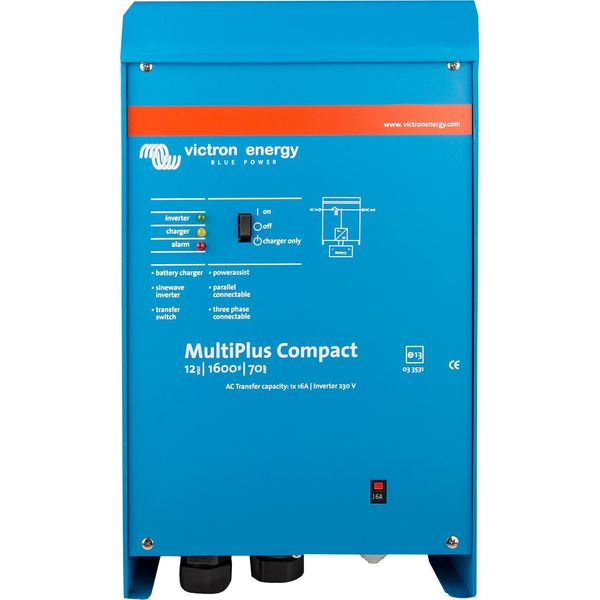

Victron Multiplus 12/1600/70 Combi Inverter Charger

Victron Multiplus 12/1600/70 Combi Inverter Charger

£1,225.58 GBP
£1,225.58 GBP
Sale Sold out
Taxes included.

Limited stock call: 01484 442879

Victron Multiplus 12/1600/70 Combi Inverter Charger



Product code: VC-CMP121620000
Manufacturer SKU: CMP121620000

Description

The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.

• 3000 Watt Peak Power

• 1300 Watt / 1600VA Continuous

• 70 Amp Battery Charger

• 4A Float charge for starter battery

• 16 Amp transfer Switch

• UPS Power Assist

• Dimensions (H x W x D) mm: 375 x 214 x 110

• Weight: 10 kg

Connection [AC] ST-18i plug
Output Frequency [Hz] 50
Output Power [W] Continuous 1600
Output Power [W] Peak 3000
Waveform True Sine Wave
Connection [DC] 8mm rings
Brand Victron
Type 12V Inverter / Chargers
Voltage Description Charger Input: 187-265V AC, InVerter Input: 9.5-17V DC, InVerter Output: 230V AC ±2%
Maximum Output Current [A] 70
Number of Outputs 1 + 4A float
Optional Remote Panel Yes, see data sheet
Additonal Float Charge Output 4A
Cables Included yes, 1.5M DC
Charge Characteristic Automatic, adaptive
Rating IP21
Efficiency 93%
Height Description 375mm
Width 214mm
Depth 110mm
Weight 10kg
Material Aluminium (blue RAL 5012)
Wattage Output: 1300W @ 25°C, 1200W @ 40°C, 800W @ 65°C
Approvals EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1, EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, ECE R10-4
Application FLA, SLA, AGM, GEL, LiFePO4 Batteries
Operating Temperature -40°C to +65°C
Amps Description Transfer Switch: 16A
Capacity Description Recommended Battery Capacity: 350 - 700 Ah
Style Combined Inverters & Battery Chargers
