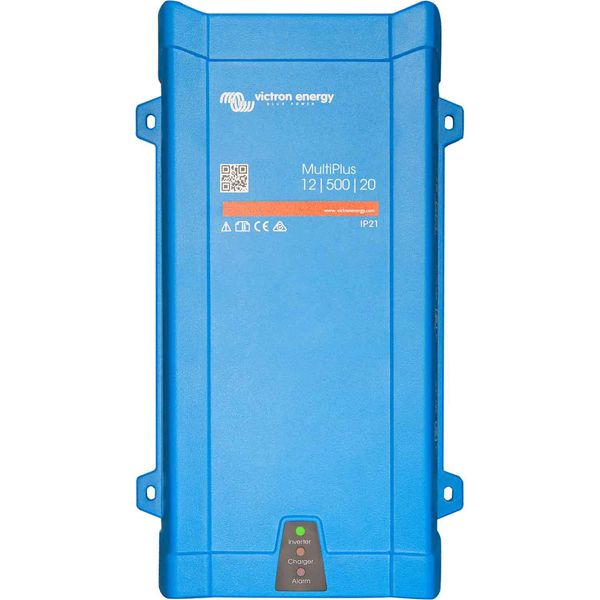

Victron MultiPlus 12/500/20 Inverter Battery Charger
Product code: VC-PMP121500000
Manufacturer SKU: PMP121500000
Description
The MultiPlus is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.
Specifications:
• 900 Watt Peak Power Output.
• 500 VA Continuous.
• 20 Amp Battery Charger.
• 1A Float charge for starter battery.
• 16 Amp Power Transfer Switch.
• Dimensions (H x W x D) mm: 311 x 182 x 100.
• Weight: 4.4kg.
• Ready for parallel operation.
| Waveform | Pure Sine Wave |
| Brand | Victron |
| Type | 12V Inverter / Chargers |
| Voltage Description | Charger Input: 187-265V AC, InVerter Input: 9.5-17V DC, InVerter Output: 230V AC ±2% |
| Model | PMP121500000 |
| Rating | IP21 |
| Efficiency | 90% |
| Height Description | 311mm |
| Width | 182mm |
| Depth | 100mm |
| Weight | 4.4kg |
| Material | Steel/ABS (blue RAL 5012) |
| Output | 230V AC |
| Wattage | Output @ 25°C: 430W, Output @ 40°C: 400W, Output @ 65°C: 300W |
| Approvals | EN-IEC 60335-1, EN-IEC 60335-2-29, EN 62109-1, EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, ECE R10-4 |
| Operating Temperature | -40°C to +65°C |
| Amps Description | Transfer Switch: 16A |
| Continuous Output | 430w |
| Style | Combined Inverters & Battery Chargers |
