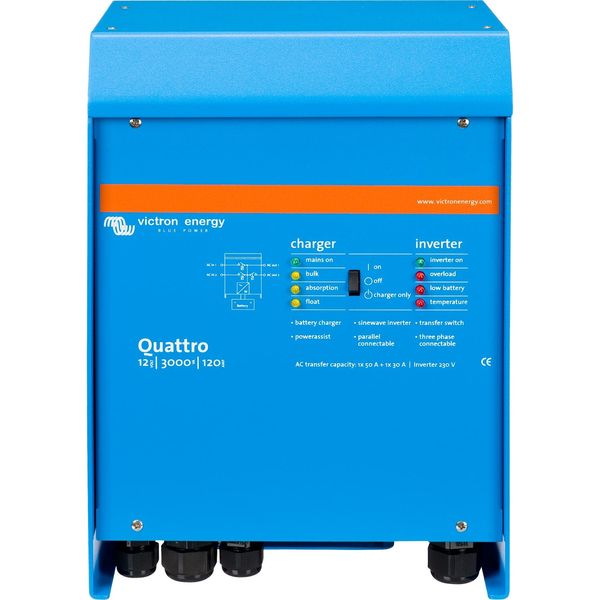

Victron Quattro Inverter Charger (12V / 3000VA / 120A)
Victron Quattro Inverter Charger (12V / 3000VA / 120A)
Regular price
£2,455.10 GBP
Regular price
Sale price
£2,455.10 GBP
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Victron Quattro Inverter Charger (12V / 3000VA / 120A)
Product code: VC-QUA123020010
Manufacturer SKU: QUA123020010
Description
Pure Sine Wave, Output 6000 Watt Peak Power, 2400 Watt / 3000 VA Continuous, 120 Amp Battery Charger, 2 x 50A changeover relays. Dimensions (H) 362 x (W) 358 x (D) 218mm, 18kg weight.
| Connection [AC] | Hard wired, terminal block |
| Output Frequency [Hz] | 50 |
| Output Power [W] Continuous | 3000 |
| Output Power [W] Peak | 6000 |
| Waveform | True Sine Wave |
| Connection [DC] | 8mm stud |
| Brand | Victron |
| Type | 12V Inverter / Chargers |
| Voltage Description | Charger Input: 187-265V AC, InVerter Input: 9.5-17V DC, InVerter Output: 230V AC ±2% |
| Maximum Output Current [A] | 120 |
| Number of Outputs | 1 + 4A float |
| Optional Remote Panel | Yes, see data sheet |
| Additonal Float Charge Output | 4A |
| Cables Included | No |
| Charge Characteristic | Automatic, adaptive |
| Rating | IP21 |
| Efficiency | 93% |
| Height Description | 362mm |
| Width | 258mm |
| Depth | 218mm |
| Weight | 19kg |
| Material | Aluminium (blue RAL 5012) |
| Wattage | Output @ 25°C: 2400W, Output @ 40°C: 2200W, Output @ 65°C: 1700W |
| Approvals | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, ECE R10-4 |
| Application | FLA, SLA, AGM, GEL, LiFePO4 Batteries |
| Operating Temperature | -40°C to +65°C |
| Capacity Description | Recommended Battery Capacity: 600 - 1200 Ah |
| Style | Combined Inverters & Battery Chargers |
