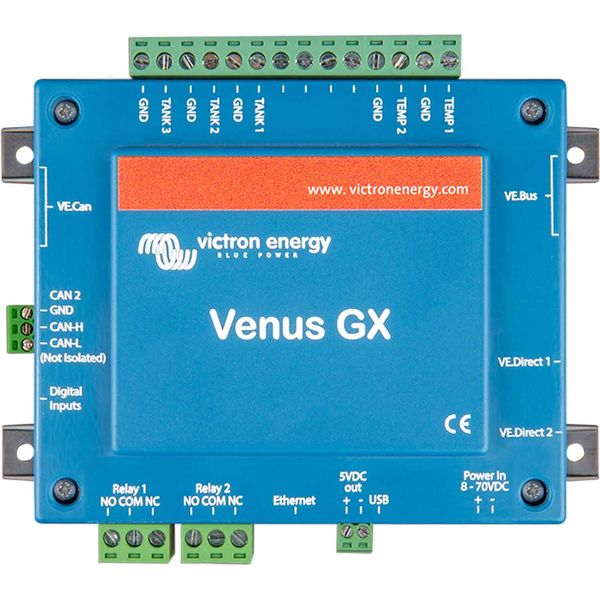

Victron Venus GX System Monitor
Product code: VC-BPP900400100
Manufacturer SKU: BPP900400100
Description
The Venus GX is the communication-centre of your installation. Venus allows you to talk to all components in your system and ensure they are working in harmony. Monitoring of live data (such as battery capacity, charging status, tank levels etc), and changing settings is performed by using your smartphone (or other device) via the free-to-use Victron Remote Management Portal (VRM). Please see downloads/data sheets for more information.| Brand | Victron |
| Type | Battery Monitors |
| Voltage Description | 8V - 70V DC |
| Model | Venus GX |
| Height Description | 45mm (1.8") |
| Width | 143mm |
| Depth | 96mm |
| Temperature Range | -20°C to +50°C |
| Approvals | Safety: EN 60950, EMC: EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1 & EN 55014-2 |
| Amps Description | Current Draw: 210mA at 12V, 110mA at 24V and 60mA at 48V |
| Connections Description | 2 VE.Direct ports, 2 VE.Can paralleled RJ45 sockets, 2nd CAN interface, 2 VE.Bus paralleled RJ45 sockets, 2 USB Host ports, Ethernet 10/100/1000MB RJ45 socket, WiFi Access Point, 3 Tank level inputs, 2 Temperature level inputs |
